product features:
The use of radioactive materials can cause radioactive contamination spots in buildings and working areas. An important task of Health Physics is to prevent spread of contamination to other work areas, in particular out of controlled areas. Contamination itself can be carried by workers on their clothes, tools and even on their bodies.
Personal body monitors mainly concerns the checking of people before they enter or leave an area, building or site.
Their typical deployment is at the boundaries between controlled and clean areas.

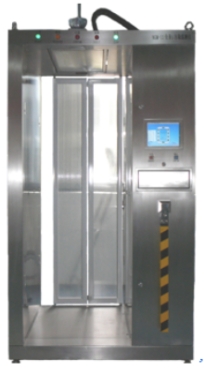

GC110 Whole Body Gamma Contamination Monitor provides Power plants and nuclear facilities gamma detection capability to monitor pedestrians leaving areas of potential radioactive contamination and for the purpose of stopping illicit taking of Special Nuclear Material (SNM). This produce has high sensitivity, ease of operation and maintenance.
The production has successfully applied in Ling-ao Nuclear Power Station, and it is the label of the process to nationalize the management system of nuclear power station radiation monitoring.
Technical specification
2.1 Minimal Detective Activity (MDA):<800Bq（any point at the central axis of the monitor during 5s continuous monitoring）；<1800Bq（walk through without staying）；
2.2 False alarm ration:≤1/10000;
2.3 Measurement time: 5s (Adjustable from 1s to 99s);
2.4 Operation temperature：0～50℃；
2.5 Relative humidity：（98±2）%（40℃）;
2.6 Dimensions(withouthandrail)：2650mm×1300mm×900mm;
2.7 Total weight: 1600kg;
2.8 power supply：AC 220V±10% ，50/60Hz；powered by UPS>2h;
Main feature

• Stainless steel material, the surface wiredrawing processing.
•  Remote communication interface easy to centralized management for the system.
•  Good Environmental adaptability and stable and reliable performance.

•  Friendly software user interface, the software can directly display the .contamination site.

•  Easy to maintain and operate, highly-automated.

•  Fast response time and alarm threshold can be set according to requirement.

•  Personnel positioning measurement, high sensitivity, intelligent check with voice guide, Chinese and English interface.

•  Two operating modes: Pause-and-count, walkthrough.
