product features:
AG110 Area Monitors / Waste Monitors Gamma Radiation Detection
AG110 suitalble for fixed monitoring like PET facillities,on-line enviromental monitoring, workplaces, in nuclear facilities, hot cells, nuclide laboratories , for monitoring trash,hospital waste, contaminated laundry and other applications.
A fixed installed monitoring system is dependent on a variaty of probes available. For example, low dose counters, high
dose counters, Geiger-Müller or proportional counters,ionization chambers and neutron dose rate detectors.

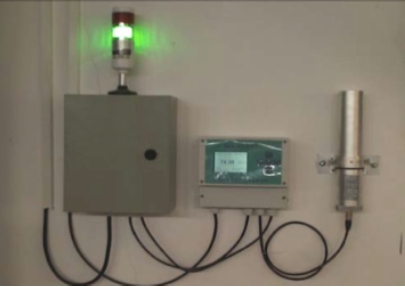

AG110 is a stationary monitor for one or two independent detectors. The operation of the device is controlled with a simple menu and softkeys. Operation of the AG110 is carried out with five softkeys located below the vacuum fluorescence display with adjustable brightness. All parameters are protected by a password.
• Wall installation, IP65
• one or MORE channels (probes)
• Memory 4000 data points
• Alarm signals (light and acustic)
• RS485/232, USB and Ethernet-interface
INDICATED USE: Radiation monitoring
SYSTEM OPERATION: Typically located at the scale/entrance area. The system will continuously monitor incoming materials for radiation.
Probe: can simultaneously access multiple HGY series digital detectors (can connect up to 255)
Units of measurement: μGy / h, μSv / h
Alarm threshold: arbitrarily set within the entire measurement range, and has a failure (fault) alarm
Communication Interface: Isolated RS485, optional wireless or Internet transmission
Probe interface: Wireless or GPRS
POWER:AC220V (-20% ~ + 20%), 47Hz ~ 63Hz, lightning protection

Protection: IP64
