product features:
- Digital Ratemeter for Radiation Detection
- Compatible with G-M, NaI Scintillation, Plastic Scintillation,and Alpha Scintillation Detectors

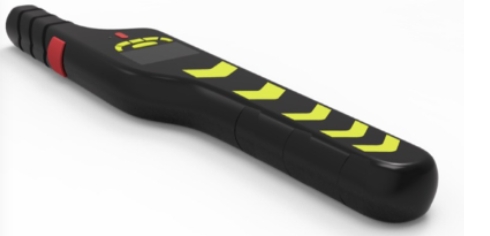

The SG110 microprocessor-controlled survey meter represents is our newest line of digital survey meters.
Includes a large, backlit digital LCD that automatically displays the correct reading with no user intervention required (auto-ranging). The SG110 can be configured to indicate, CPM, CPS, R/hr and/or Sv/hr. Units can be easily changed with an internal switch . The survey meter includes probe-saturation and other error indicators. A scaler function, adjustable alarms an external data port are also included.
This survey meter supports most external probes. For a choice of probes with photos and specifications .
Specifications
- Input Sensitivity 0.050v
- Display 4 DIGIT X .75” Tall 40 mm) LCDW/Led BACKLIGHT
- Display Back light Push button on for 30 seconds auto off
- Dose Ranges 0.0 uR/hr to 1000 R/hr & 0.0 uSv/hr to 10Sv/hr
- Display Ranges 0—9,999 cps, 0—9999 cpm
- Scaler Count Time Ranges 10 second increments to 2500 seconds
- Diagnostics Low Battery, Overload (Saturation)
- Range Adjustment AUTO RANGING ALL SCALES
- Electrical Non-Linearity < 5%
- Response Time FAST 4 seconds — SLOW 20 seconds
- Drift < 5%
- Environmental -20 deg F (-28 deg C)-140deg F (60 deg C) |5-95% RH IPX4 Housing
- Battery:9Vx1 (Nominal 100 hrs Operation)
- Circuitry Digital Microprocessor Controlled
- Dimensions (6cm) H X (10cm) W X (54cm) L
- Weight 2.5 lbs (1.1kilo) W/ Batteries
- (Optional, extra cost)
